Welding to custom dimensions and most various requirements
Standard of many products and the basis of many requirements are material thicknesses from 0.1 to 10 mm, which are joined. We also implement larger sheet thicknesses (from 10 mm on both sides) for your individual projects at any time.
Here, our experts use versatile welding processes – from standard arc welding (TIG) to laser welding.

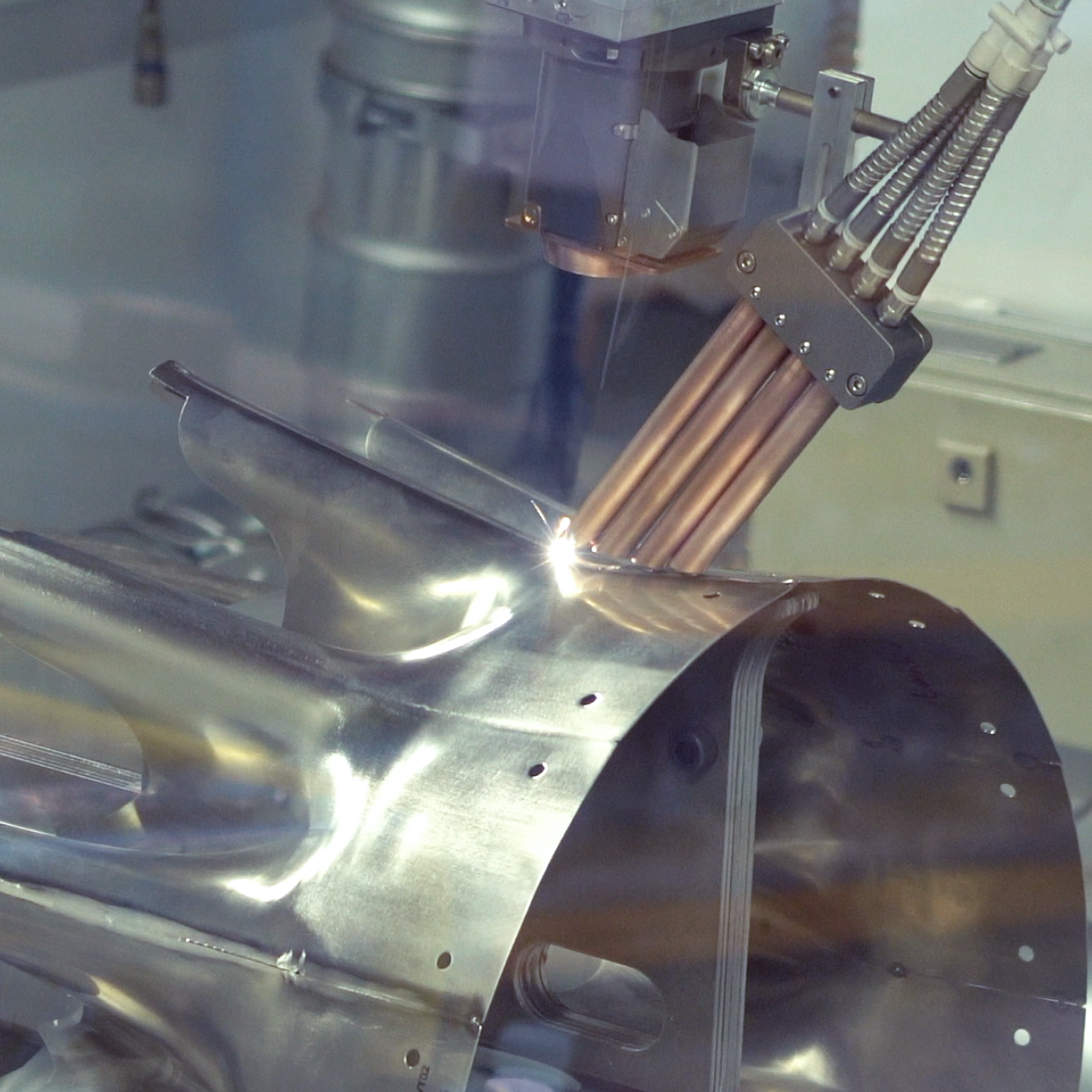

The state-of-the-art production systems include various 5-axis guiding machines. Our specialty: laser welding of low-distortion, high-quality seams on difficult-to-weld materials. We reach and process even inaccessible places on components by developing our own laser heads.
We are NADCAP certified for this process.
- NADCAP certificates confirm our competence
- Specialty areas such as resistance welding (spot welding)
- Laser welding systems for large series components
- Wavelengths of CO2 and solid-state lasers are possible
Technical features
3 Laser welding cells
2,5 – 6kW,
Working range from max. 2.000 – 4.000 mm

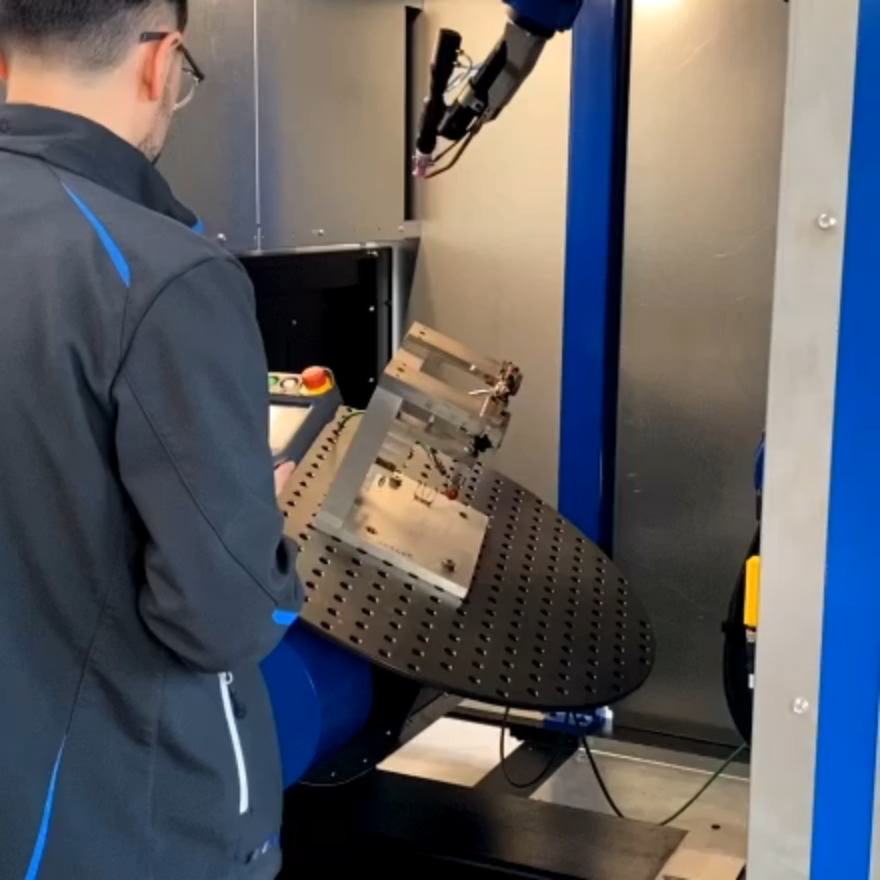

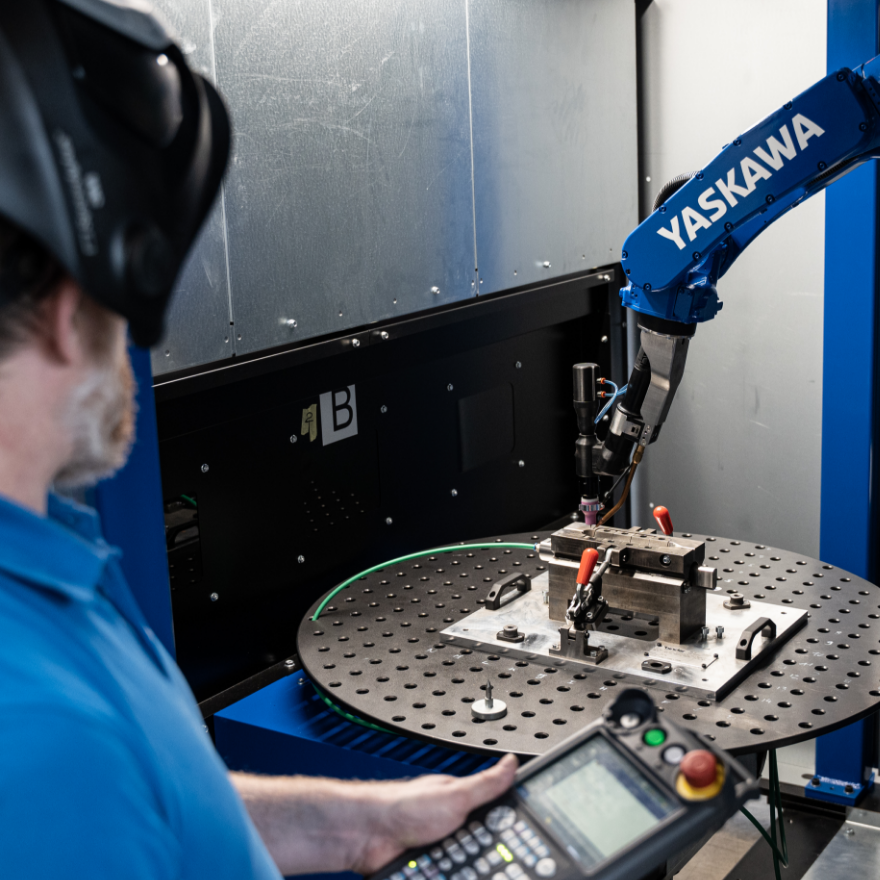

1 Welding Cell

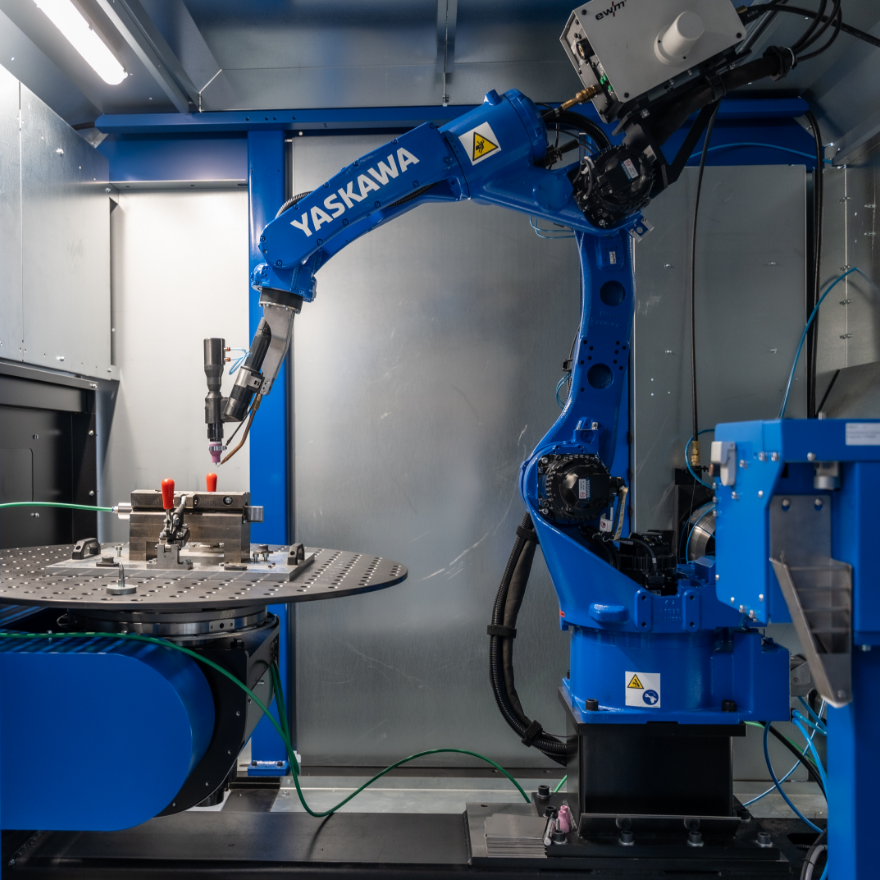

2 stations and one robot, rotating axis, table size diameter 500 mm, max. part weight 500 kg, EWM welding technology

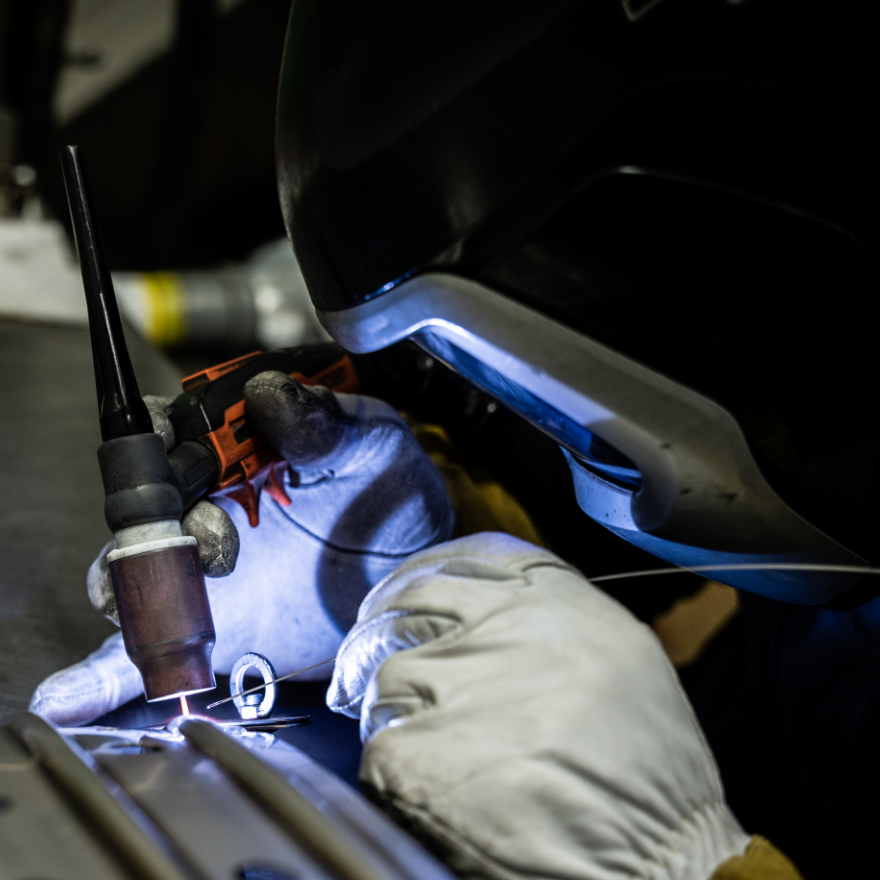

4 TIG
Workstation with manual welder for tightest tolerances
Gluing
Project related application
Material / Flexibility
Steel
unalloyed and high-alloyed
from 0.1 to 10 mm
Aluminum materials
from 0.1 to 10 mm
Titan
from 0.1 to 10 mm
Nickel-based materials
from 0.1 to 10 mm
References
GE
Aviation
MTU
Aero Engines
GKN
Aerospace
